200x200mm 6061-T6 Aluminum Stage Truss with 8-Bolt Connection for Portable Screw Truss System

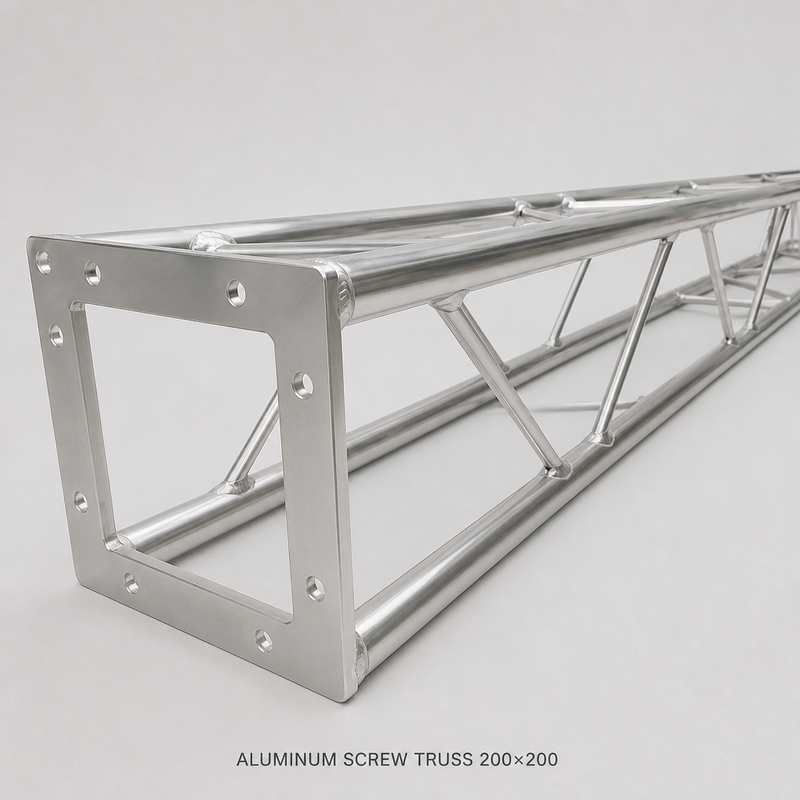

Our 200×200mm aluminum screw truss is a versatile bolt-together truss system built for stage, exhibition and event applications. Made from national-standard 6061-T6 aluminum, it delivers reliable strength with an easy 8-bolt connection.## Structure

- **Main Tube Φ30×2mm** — Four corner chords for maximum rigidity
- **Diagonal Lacing Φ12×2mm** — Zig-zag bracing on all four sides

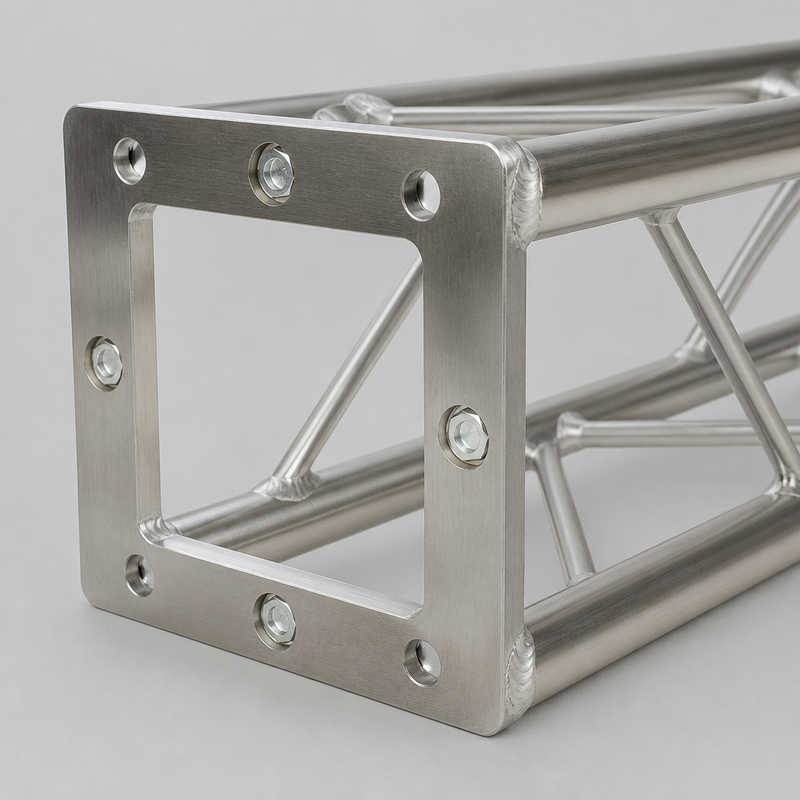

- **End Plate 30×6mm** — Square plate with 8 bolt holes (corner + side center)
- **Hex Bol
t Connection** — Simple, strong, reusable joints

## Connection

1. Align the end plates of two sections
2. Insert 8 hex bolts
3. Tighten and lock — done

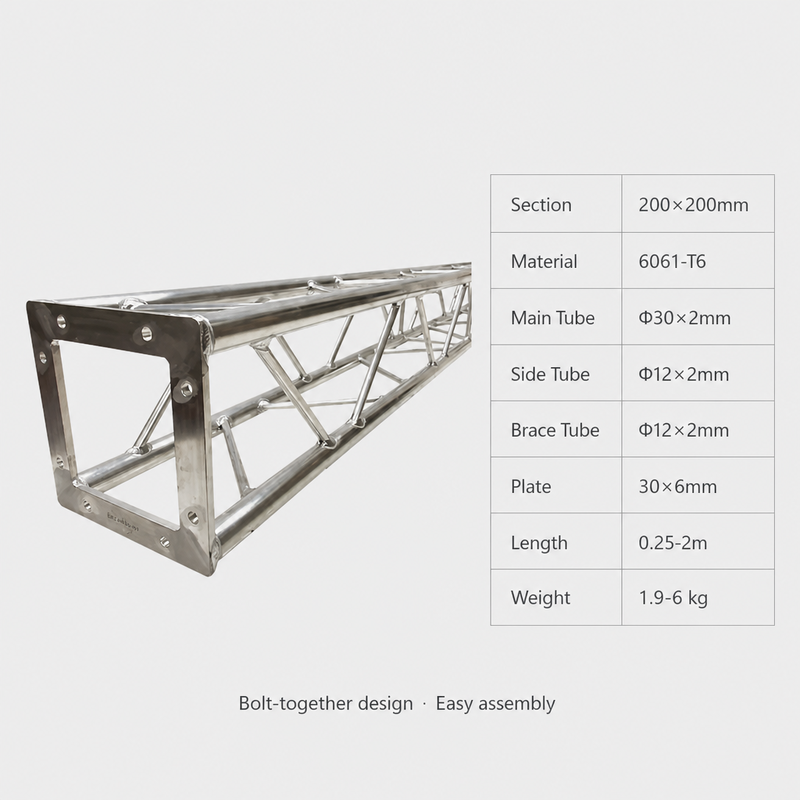

No special tools needed. Sections assemble and disassemble in minutes, making transport and storage easy.| Parameter | Value |
|-----------|-------|
| Section | 200×200mm |
| Material | 6061-T6 Aluminum |
| Main Tube | Φ30×2mm |
| Side Tube | Φ12×2mm |
| Brace Tube | Φ12×2mm |
| End Plate | 30×6mm |
| Length | 0.25m / 0.5m / 1m / 1.5m / 2m |
| Weight | 1.9 / 2.7 / 3.2 / 4.35 / 6 kg |

Applications

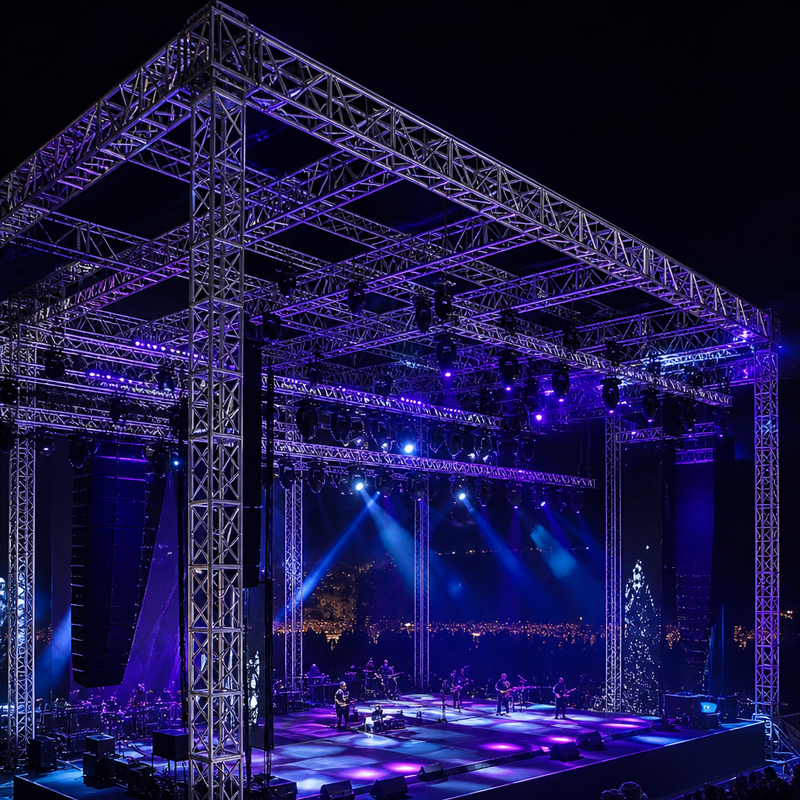

- Stage and concert truss systems
- Exhibition booths and displays
- Wedding and event structures
- Lighting and speaker rigging

Custom lengths available on request. Contact us for bulk pricing!
