Product Details:
Payment & Shipping Terms:
|
| Place Of Origin: | Guangzhou | Brand Name: | GF-Truss |
|---|---|---|---|
| Material: | Aluminum Alloy T6061-T6 | Color: | Black, Red, Customizable |
| Application: | Stage Prerformance,event Show | Advantage: | Light Weight ,Strong Loading |
| Warranty: | 3 Years | Size: | 1*1M,1*2M,1.22M*1.22M,1.22M*2.44M |
| Max Loading: | 750KG/square Meter | Service: | OEM Offered |
| High Light: | 1mx2m Aluminum Stage Platform,DJ Concert Aluminum Stage Platform |
||
1mx2m aluminum platform DJ stage concert folding stage platform deck
The complete stage system include stage board, stage frame, leg(adjustable or fixed),adjustable basement,brace,guardrail(optional),skirt(optional),stairs(optional) storage case(optional)etc.
one piece of panel match 4 pieces of legs
There are usually 4 sizes for the truss stages : 1x1m,1x2m,1.22x1.22m,1.22x2.44m.(4x4ft, 4x8ft)
All have passed the TUV Test.
Products description:
| Usage | Concert; Events; Exhibition; Wedding; Performance; Show And So On |
| Stage Platform Material | 18mm Skidproof Plywood |
| Aluminum Material | Aluminum Alloy 6061-T6/6082-T6 |
| Stage Type | Simply Stage; Assembly Stage; Foldable Stage; Glass Stage |
| Loading Capacity | 750KG/M² |
| Stage Platform Size | 1*1m; 1.22*1.22m; 1*2m; 1.22*2.44m; Customized |
| Stage Height | Adjustable: 0.4~0.9m; 0.6~1m; 0.8~1m; 1~1.5m; Customized |
| Fixed: 0.4m; 0.6; 0.8; 1m; 1.2m; 1.5m; Customized; | |
| Stage Shape | Square; Rectangle; Circle; Curve; Star; Heart; Customized |
| Main Tube Thickness | φ50*3mm |
| Stage Stairs | Foldable: 2 Floors; 3 Floors; 4 Floors; 5 Floors; Customized |
| Fixed: 2 Floors; 3 Floors; 4 Floors; 5 Floors; Customized | |
| Color | Black; Red; Blue; Yellow; Customized |
| Extra Parts | Guardrail; Truss; Stair; Carpet; Flight Case; Customized |

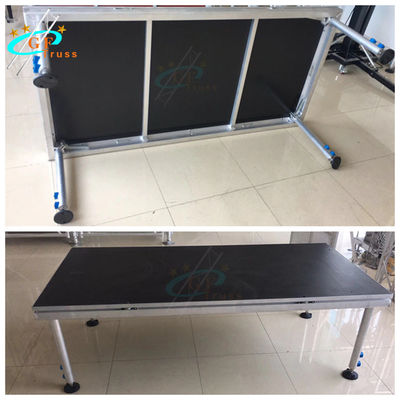

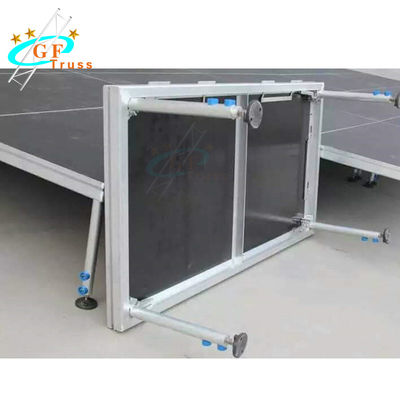

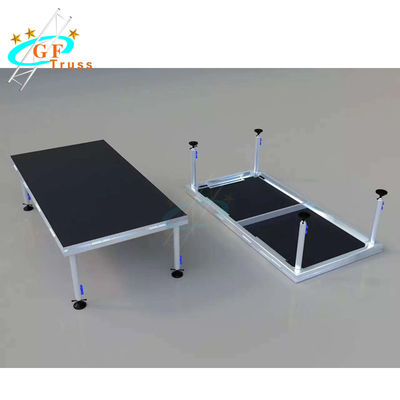

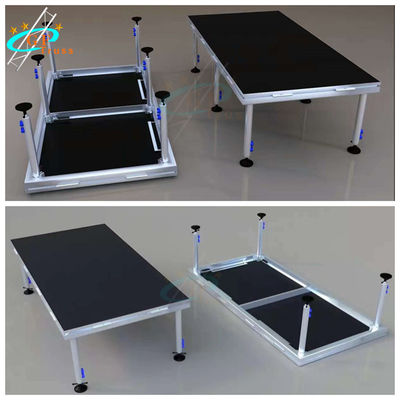

Details of the product pictures:
Successful cases:
