Product Details:
Payment & Shipping Terms:
|
Place Of Origin: | Guangzhou | Brand Name: | GF-Truss |
---|---|---|---|
Material: | Aluminum Alloy T6061-T6 | Color: | Black, Red, Customizable |
Application: | Stage Prerformance,event Show | Advantage: | Light Weight ,Strong Loading |
Warranty: | 3 Years | Size: | 1.22M*1.22M ,1.22M*2.44M |
Max Loading: | 750KG/square Meter | Service: | OEM Offered |
High Light: | Aluminum 6061 Portable Stage Platform,OEM Portable Stage Platform |
Top-quality Aluminum Mobile Folding Portable Stage Platform For Wedding Party
Details of Stage:
Platforms:
• Lightweight, portable, and compact for easy setup, transport, and storage.
• Size: 1*1m, 1*2m, 1.22*1.22m, 1.22*2.44m optional
• Platform backside support: aluminum 30x30mm square tube
• Water-resistant Industrial finish.
• Waterproof, strong, and aluminum lattice structure construction with a load capacity of up to 750 KGS/sq.m.
• Stainless steel self-drilling screw for stage deck, won't get rusted!
Legs:
• Lightweight legs can be adjusted at 24, 32, 40, or 48 inches, etc (60, 80 100, and 120cm) using interchangeable leg extension tubes.
• Legs are shared between adjacent platforms.
• Accessories such as rubber mats, slope adjustment wedges, and spikes for soft ground and slope applications are available.
Side Braces:
• Lightweight and strong tubular aluminum construction.
• Side braces are shared between adjacent platforms.
• Stage braces using aluminum pins rather than iron ones will never get rust.
Adjustable Base:
• Stainless steel adjustable base available, a good option for stage used for swimming pool.
• Standard base height 250mm.
Products Description:
Item name | Aluminum assembling stage |
Aluminum Material | Aluminum Alloy 6061-T6 18mm thickness board frame, main tube 50*3MM |
Platform(material) | Aluminum frame, wooden/Glass/Acrylic platform |
Component | Stage panel, Stage frame, Stage brace, Lifting tube, and Adjustable base |
Size | 1.22*1.22m 4*4feet ,1.22*2.44m 4*8feet,2*1m,1*1m |
Adjustable height | Adjustable: 0.6-1.0m, 0.9-1.5m, 1.5-2m, OEM |
Load capacity | 750kg/sq.m |
Color | Red, black, brown, OEM available |
Stage Shape | Square, Rectangle, Circle, Curve, Star, Heart, OEM |
Stage Stairs | 2 floors, 3 floors, 4 floors, 5 floors, OEM |
Extra Parts | Guardrail, Truss, Stair, Carpet, Flight Case, OEM |
Feature | Durable, Strong loading capacity, Easy to install |
Application | Used for dancing, school, events, celebration, concert, wedding, exhibition, indoor or outdoor performance, etc |
Stage:
All stage has 5-parts, frame+plywood, brace, pillars, adjustable base, and stairs.
When you need a quotation for a set of stages, you should tell us how many meters/feet of length, width, and height, then we could calculate the quantity and price of the spare parts for you.
We also could make different shapes and different heights of the stage for you.
How to install:

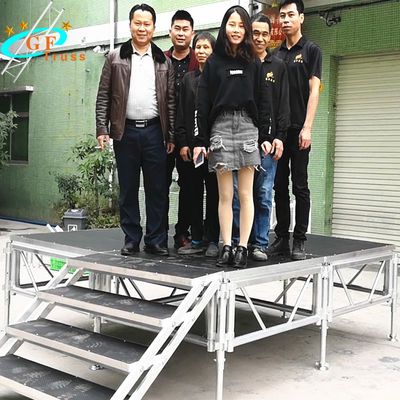

Stage with Stairs:
Handrails:
