Product Details:
Payment & Shipping Terms:
|
| Material: | Aluminum Alloy 6082-T6/ 6061-T6 | Color: | Silver, Black, Blue, Customized |
|---|---|---|---|
| Shape: | Square, Triangle, Ladder, Arch, Circle | Length: | 1m/2m/3m/4m Or Customized |
| Packing: | Air Bubble Film Or Carton | Warranty: | 3 Years |
| Service: | Online 7x24hours | Type: | Spigot Or Screw |
| Connection Way: | Spigot Or Bolt Aluminum Truss | Feature: | Heavy Load,Portable/no Rust |
| Main Tube: | 50*3mm | Product Name: | GF Truss |
| High Light: | 6082 Aluminum Square Truss,4M Aluminum Square Truss,Custom Aluminum Roof Truss |
||
0.5-4M 290*290MM Aluminum Square Truss Aluminum Roof Truss
Customized 0.5-4M 290*290MM Aluminum Square Truss Aluminum Roof Truss
Our main product:
Aluminum Stage Truss
Aluminum Spigot Truss
Aluminum Lighting Truss
Aluminum Square Truss
Aluminum Roof Truss System
Goal Post Truss
Arch Truss
Line Array Truss
LED Screen Truss
Aluminium Scaffold Tower
Aluminum Party Tent
Stage Barriers
Light Truss Stand
Aluminum Stage Platform
Outdoor Concert Stage
Details:
| Brand Name | Aluminum Spigot Stage Truss |
| Material | Aluminum alloy 6061-T6/6082-T6 |
| Light duty truss | 100*100mm; 200*200mm |
| Medium duty truss | 290*290mm; 300*300mm; 350*350mm |
| 390*390mm ; 520*520mm; 400*600mm,500*600mm | |
| Heavy-duty truss | 520*760mm ; 600*760mm; 680*1010mm |
| Main Tube thickness | 20*2mm; 50*3mm; 30*2mm; 50*5mm |
| Brace Tube thickness | 12*2mm; 20*2mm; 12*2mm; 30*2mm |
| Vice Tube thickness | 12*2mm; 20*2mm; 25*2mm; 50*2mm; 50*3mm |
| Length | 0.5m/1m/1.5m/2m…….4m or custom size |
| Color | Silver, black, or customized |
| Truss type | Spigot or bolt |
| Truss Shape | Ladder truss, triangular truss, square truss, arch truss, circle truss |
| Usage | Concerts, new product release, fashion show, booth stand construction |
Standard Available Length
| Meters | Feet | Weight (KG) |
| 0.5 | 1.64 | 5.2 |
| 1 | 3.28 | 8.0 |
| 2 | 6.56 | 13.5 |
| 3 | 9.84 | 19.5 |
Other Length available on request

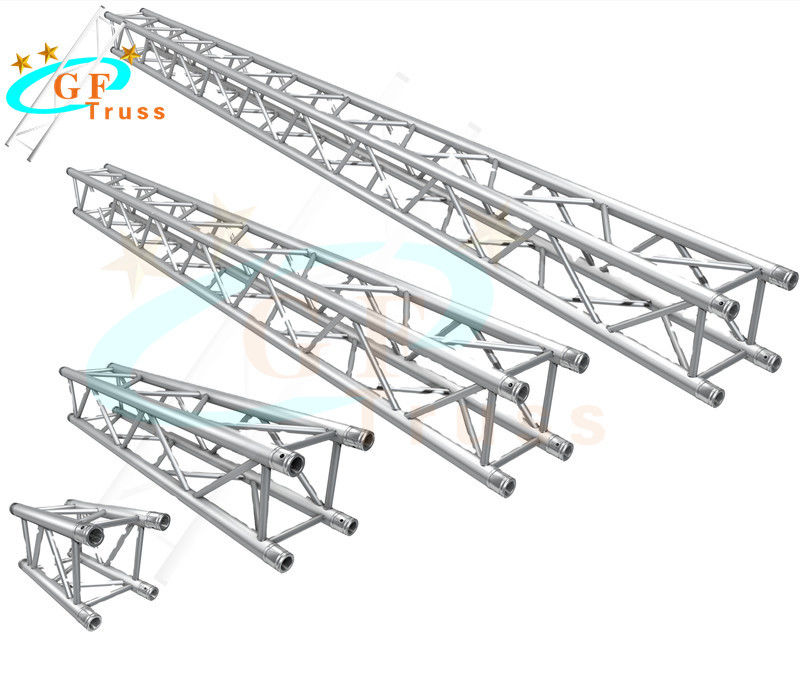

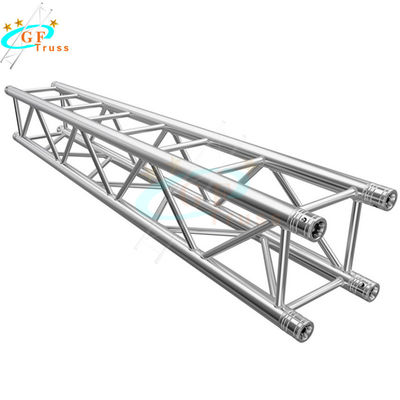

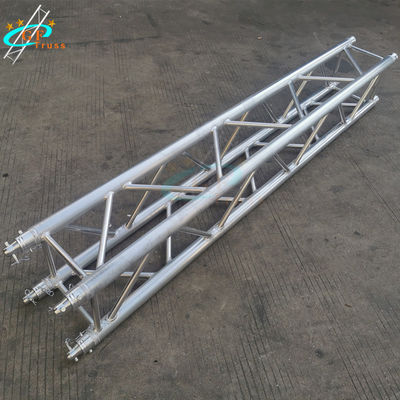

Product Pictures:
Products Details:
In order to provide optimum safety and reliability, all the materials are Aluminum Alloy 6082- T6 or 6061-T6. All the welding rods are the same as Global Truss.

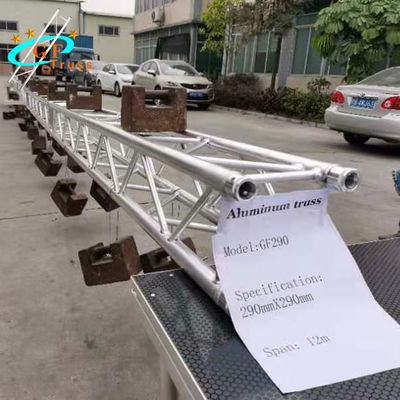

To avoid this kind of incident. We will provide the necessary information to customers. Such as TRUSS load table, roof system strength calculation, welding rod TUV certification, material analysis, etc.
Production Process:
