| Material: | Aluminum Alloy 6082-T6/ 6061-T6 | Color: | Silver, Black, Blue, Customized |
|---|---|---|---|
| Shape: | Square, Triangle, Ladder, Arch, Circle | Length: | 1m/2m/3m/4m Or Customized |
| Packing: | Air Bubble Film Or Carton | Warranty: | 3 Years |
| Service: | Online 7x24hours | Type: | Spigot Or Screw |
| Connection Way: | Spigot Or Bolt Aluminum Truss | Feature: | Heavy Load,Portable/no Rust |
| Main Tube: | 50*3mm | Product Name: | GF Truss |
| High Light: | 290X290mm Aluminum Spigot Truss,Outdoor Display Aluminum Spigot Truss,2m Length Aluminum Spigot Truss |
||

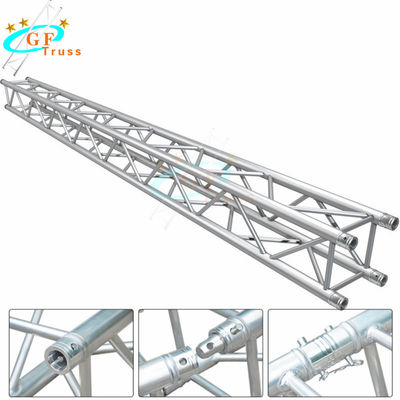

290*290mm aluminum spigot stage truss for stage truss system for outdoor displays

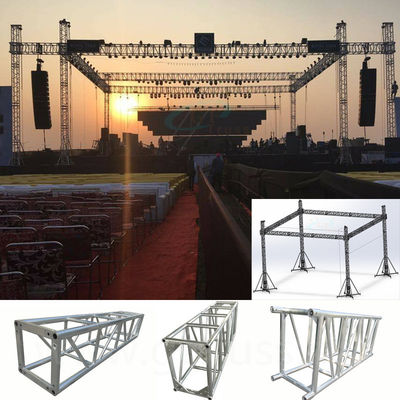

Application:
aluminum trusses are commonly used in a variety of different fields. Our products are easy to set up and give our customers a great variety of possible installations. The trussing systems are commonly used for all kinds of applications such as truss lighting designs, exhibition booths, exhibit booths, trade show displays, booths for the trade show, design booths, trade show banners, displays for trade shows,s and so on.
Details:
| Brand Name | Aluminum Spigot Stage Truss |
| Material | Aluminum alloy 6061-T6/6082-T6 |
| Light duty truss | 100*100mm; 200*200mm |
| Medium duty truss | 290*290mm; 300*300mm; 350*350mm |
| 390*390mm ; 520*520mm; 400*600mm,500*600mm | |
| Heavy-duty truss | 520*760mm ; 600*760mm; 680*1010mm |
| Main Tube thickness | 20*2mm; 50*3mm; 30*2mm; 50*5mm |
| Brace Tube thickness | 12*2mm; 20*2mm; 12*2mm; 30*2mm |
| Vice Tube thickness | 12*2mm; 20*2mm; 25*2mm; 50*2mm; 50*3mm |
| Length | 0.5m/1m/1.5m/2m…….4m or custom size |
| Color | Silver, black, or customized |
| Truss type | Spigot or bolt |
| Truss Shape | Ladder truss, triangular truss, square truss, arch truss, circle truss |
| Usage | Concert, new product release, fashion show, booth stand construction |
Standard Available Length
| Meters | Feet | Weight (KG) |
| 0.5 | 1.64 | 5.2 |
| 1 | 3.28 | 8.0 |
| 2 | 6.56 | 13.5 |
| 3 | 9.84 | 19.5 |
Other Length available on request
Product Pictures:
Products Details:
In order to provide optimum safety and reliability, all the materials are Aluminum Alloy 6082- T6 or 6061-T6. All the welding rods are the same as Global Truss.
To avoid this kind of incident. We will provide the necessary information to customers. Such as TRUSS load table, roof system strength calculation, welding rod TUV certification, material analysis, etc.
