Indoor Aluminum Alloy 6061 T6 LED Screen Truss System Ground Support for LED Display Cabinet

Indoor Aluminum Alloy 6061 T6 LED Screen Truss System Ground Support for LED Display Cabinet
Indoor Aluminum Alloy 6061 T6 LED Screen Truss System Ground Support for LED Display Cabinet Indoor Aluminum Alloy 6061 T6 LED Screen Truss System Ground Support for LED Display Cabinet Indoor Aluminum Alloy 6061 T6 LED Screen Truss System Ground Support for LED Display Cabinet Indoor Aluminum Alloy 6061 T6 LED Screen Truss System Ground Support for LED Display Cabinet

Large Image :  Indoor Aluminum Alloy 6061 T6 LED Screen Truss System Ground Support for LED Display Cabinet Get Best Price

Product Details:
Place of Origin: China
Brand Name: GF truss
Certification: CE, SGS, TUV, ISO
Model Number: GF-LGS
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: US$10-US$5000/set
Packaging Details: Flight Case or air bubble film
Delivery Time: 5-7days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000set/week
Detailed Product Description
Material: Aluminum Alloy 6061-T6 Color: Black Or Silver
Size: 0.5M, 0.8M, 1M, OEM Base Material: Steel
Ground Beam: Aluminum Alloy Usage: Outdoor/Indoor LED Screen Haning
Cabinet Size: For All Cabinets Lead Time: 5-7days
High Light:

6061 LED Screen Truss System

,

0.52M LED Screen Truss System

1. Feature:

1) Aluminum Alloy Ground Support is light-weight and powerful.

2) All connection is easy lock

3) Fast disassembly structure

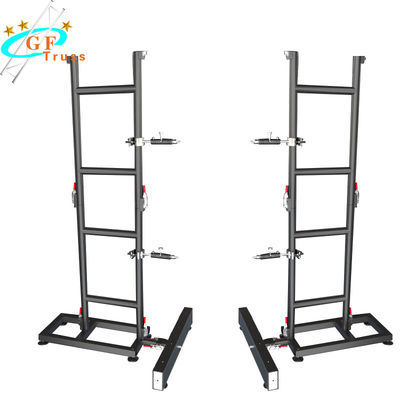

The ground support is simple light weight and easy to erect. It has been primarily developed for short term hire, the counterbalance arm and weights can be moved from left to right and also front to rear so should lend it self to most applications.



2. Products Details

 Part of LED Screen   Support   Specification
  Background   Supporter

  Material: aluminum alloy 6061-T6
  Main Tube: 50*3mm
  Measure: 50*500*1000mm

  According to cabinet Size, also can do 0.5M, 0.8M and so on.

  Adjustable Base   Material: aluminum alloy 6061-T6
  Main Tube: 50*3mm
  Measure: 150*500*1000mm
  Ground Beam

  Material: aluminum alloy
  Size:69×138×6mm
  Length:1M/pc
  With Easy Lock
  Measure: 1000X200X69mm

  According to cabinet Size, also can do 0.5M, 0.52M, 0.64M, 0.96M and so on

  Lock+ Clamp   Material: aluminum alloy+Iron
  stretchable clamp
  Footboard

  Material: aluminum alloy + 9mm plywood
  Measure: 380*85*1000mm

  According to cabinet Size, also can do different size footboard.

  Horizontal Pipe

  Material: aluminum alloy
  Length:1M/pc
  Measure: 50*50*1000mm

  According to cabinet Size, also can do different size footboard.



3. Products Detail Pictures:



Ground Beam

Indoor Aluminum Alloy 6061 T6 LED Screen Truss System Ground Support for LED Display Cabinet 0



Indoor Aluminum Alloy 6061 T6 LED Screen Truss System Ground Support for LED Display Cabinet 1



Screw Lock for Cabinet corners

Indoor Aluminum Alloy 6061 T6 LED Screen Truss System Ground Support for LED Display Cabinet 2



Fast Lock

Indoor Aluminum Alloy 6061 T6 LED Screen Truss System Ground Support for LED Display Cabinet 3



Indoor Aluminum Alloy 6061 T6 LED Screen Truss System Ground Support for LED Display Cabinet 4



Indoor Aluminum Alloy 6061 T6 LED Screen Truss System Ground Support for LED Display Cabinet 5

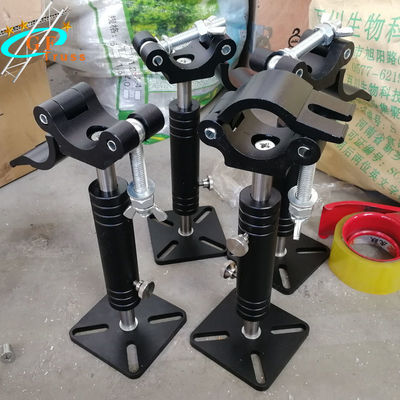

Adjustable Height 0.7-1M from ground

Indoor Aluminum Alloy 6061 T6 LED Screen Truss System Ground Support for LED Display Cabinet 6



Indoor Aluminum Alloy 6061 T6 LED Screen Truss System Ground Support for LED Display Cabinet 7
